ME219006 219-006 12v Latching Relay circuit

Our Price: £12.75

Description

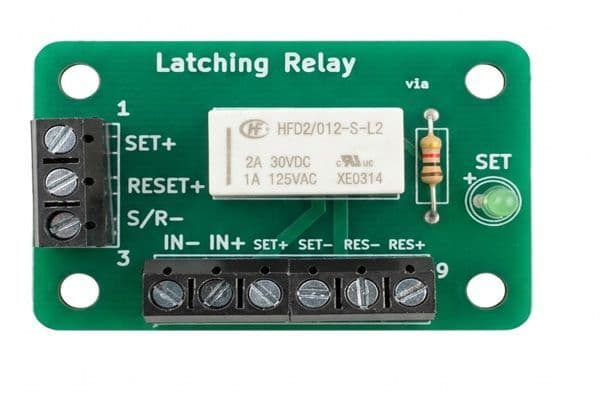

This is a compact Bistable/Latching Relay Module and can be used in various power functions and or applications which require a memory state.

This Module is pre assembled, tested and made from high quality FR4 board.

Terminals 1, 2 and 3 and the set/reset terminals. Terminal 3 common negative.

Terminals 4 and 5 provide the supply voltage which gives terminals 6 and 7 as output 1 (Set) and terminals 8 and 9 as output 2 (Reset).

When power to the module has been disconnected the module remembers its current state for when power is reapplied. The LED is lit when control voltage is applied and the module is ready for triggers set/reset. The control voltage is rated at 12v DC – 25v DC

Please note that PCB Pillars / Standoffs will be required for the circuit board. These fit into the 4 pre drilled holes of the circuit board.

Control power supply 12v DC – 25v DC
Set/Reset 10v DC - 20v DC
Output Voltage 12v DC – 25v DC 2A (Depending on the Control power supply voltage)
DPDT Relay Module 25v DC 2A (up to a 60W motor)
Board size 55mm x 30mm x 16mm
