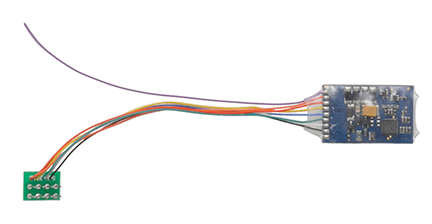

A 8 Pin (NEM652) DCC Decoder suitable for models fitted with a 8 Pin DCC decoder socket
Highlights include:
Dual-mode DCC/DC decoder with Back EMF function
4 powered function outputs
0.9A continuous load
RailComPlus® for automatic registration on Dynamis Ultima
Suitable for models equipped with DC motors (including coreless motors)
Operating Modes
NMRA/DCC with 14, 28 and 128 speed steps
Short and Long addresses
DCC and DC operation (DC operation is de-selectable)
Automatic recognition of operational mode and DCC speed step selection
Supports Lenz® LG 100 braking sections
Motor Control Features
Suitable for models equipped with DC motors (including coreless motors)
0.9A continuous load
Silent & safe 20kHz pulse width frequency motor regulation
Motor output overload protection; Back EMF (de-selectable)
Function Outputs
4 powered-function outputs with overload protection
250mA load per output
500mA total load of all function outputs
Shunting speed and momentum key selectable
Dimensions
25.5mm x 15.5mm x 4.5mm (+ wiring harness)
Default Address
Address 3
Programming
DCC Service Mode & DCC PoM (Programming on Main)
Additional Features
RailCom® Feedback system
RailComPlus® automatic Registration
This decoder is manufactured on behalf of Bachmann Europe by ESU.
